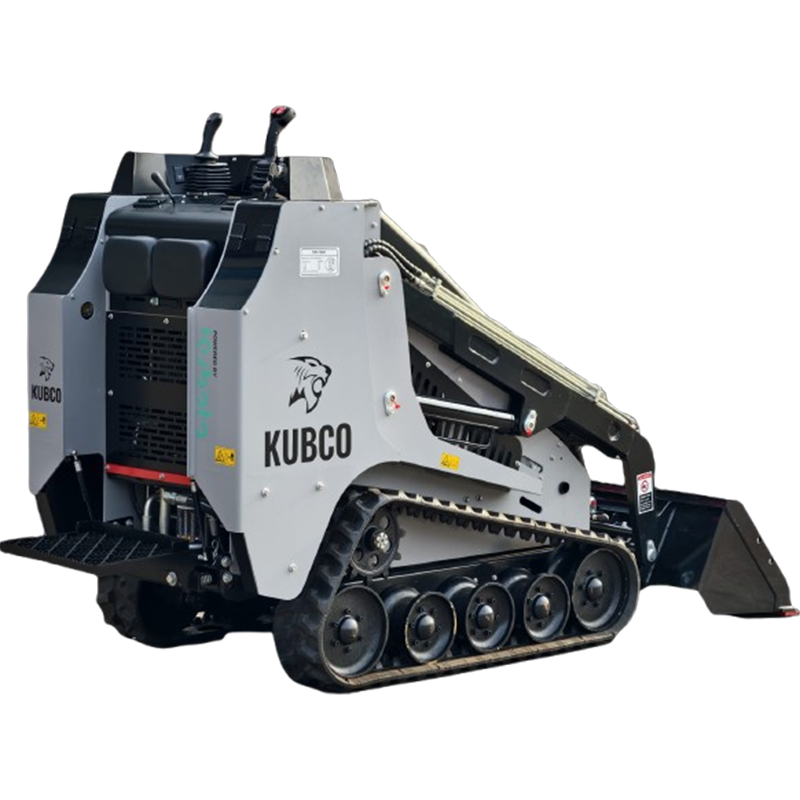

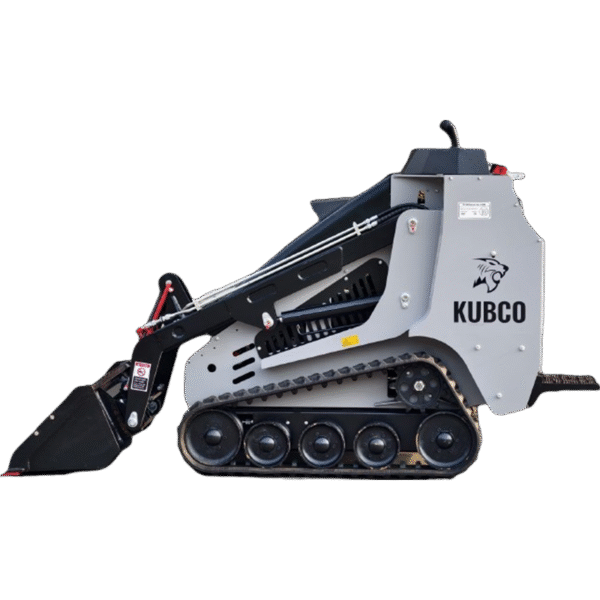

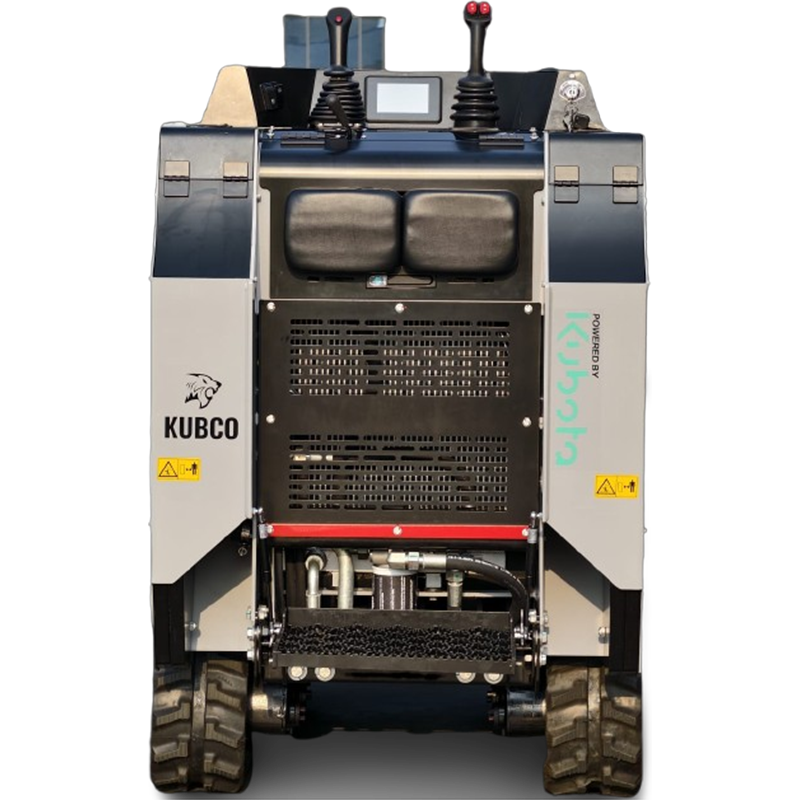

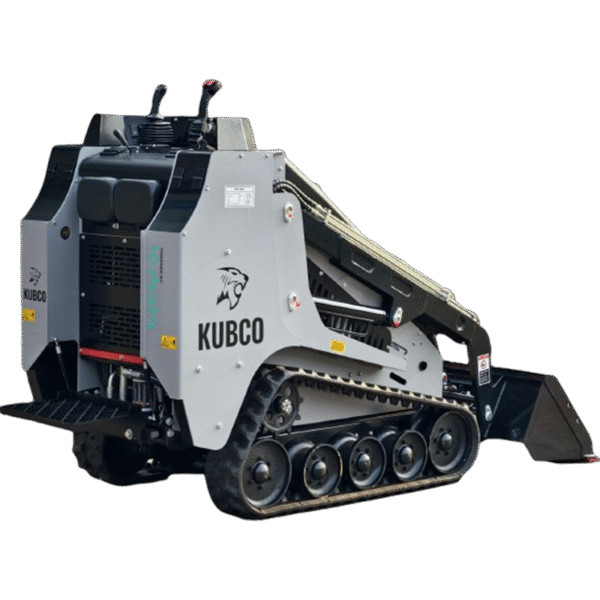

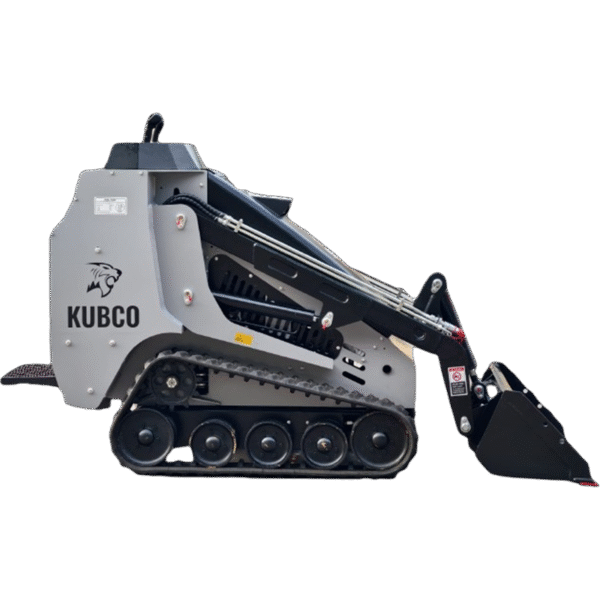

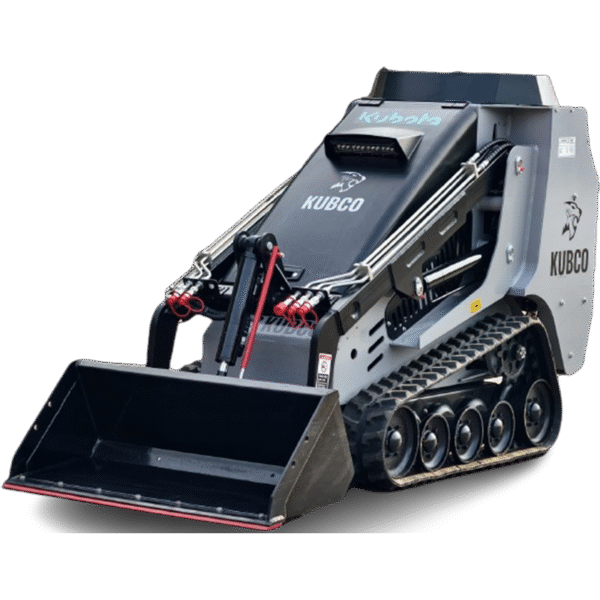

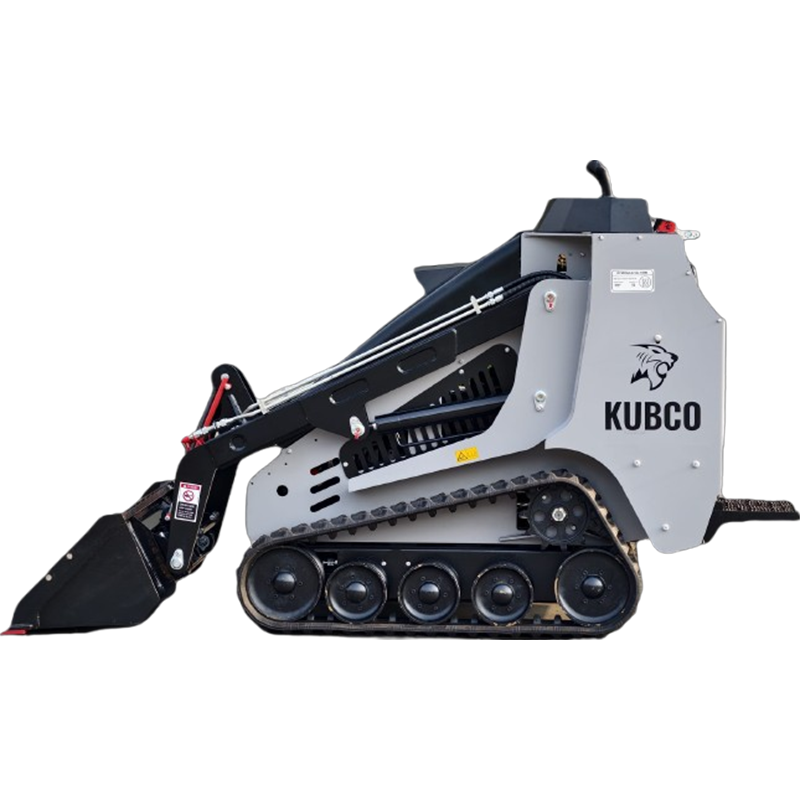

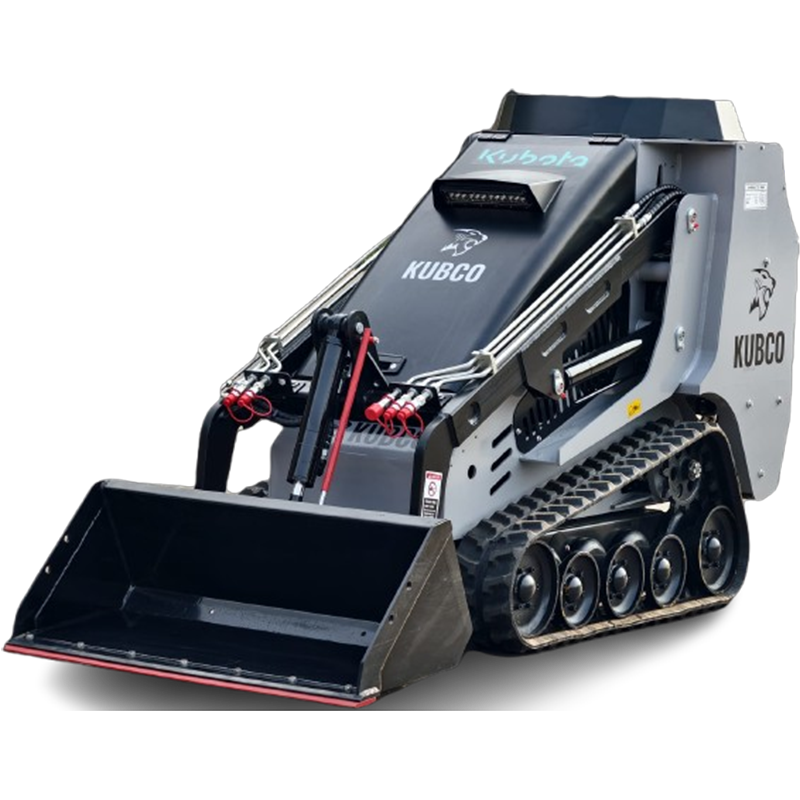

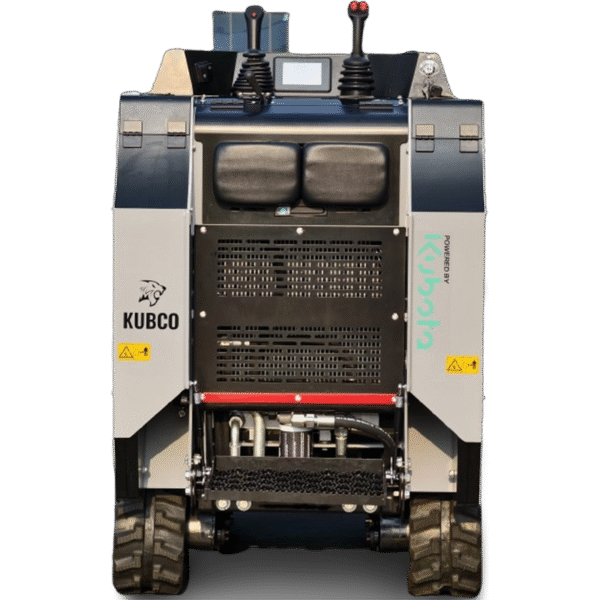

Skidsteer Loader KBS-580

$33,490.00 (+GST)

finance options available

  • Compact powerhouse engineered for tight spaces and heavy-duty tasks.

  • Versatile skidsteer with superior lifting capacity and smooth hydraulic control.

  • Rugged design built for durability on demanding construction and landscaping sites.

  • High-performance loader combining agility, strength, and operator comfort.

Request a quote
Share
Contact

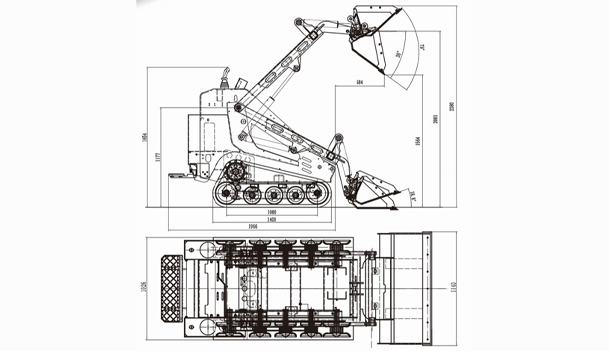

TECHNICAL SPECIFICATION

PERFORMANCE:
Bucket capacity : 0.15 m3
Travel speed : 0-9.0 km/h
Max. unloading height : 2801 mm
Max. lifting weight : 600 kg
L x W x H : 2752 x 1140 x 1654 mm

ENGINE:
Model: Kubota D1105
Power: 18.7kw
Displacement: 1.123L
Cylinders: 3
Stroke: 78.4mm
Bore: 78mm

GENERAL:
Operating weight : 1800 kg
Rated pressure : 20 Mpa
Flow of main pump : 67.2 L/min
Max working height : 2380 mm
Max pin height : 2081 mm
Max dump height : 1564 mm
The height point discharge distance : 584 mm
Total height : 1654 mm
Ground clearance : 300 mm
Wheel base : 1060 mm
Total weidth : 1026 mm
Bucket width : 1140 mm

Skidsteer Loader KBS-580
Unmatched quality at an unbeatable price
• Engine: Kubota EPA engine
• Load sensitive valve
• B&P hydraulic system
• Full body robotic welding
• Full body powder coating
• Two speeds
• Wide range of attachments options
• Perfect finishing
• Quick after sale and parts supply Customizable colors
