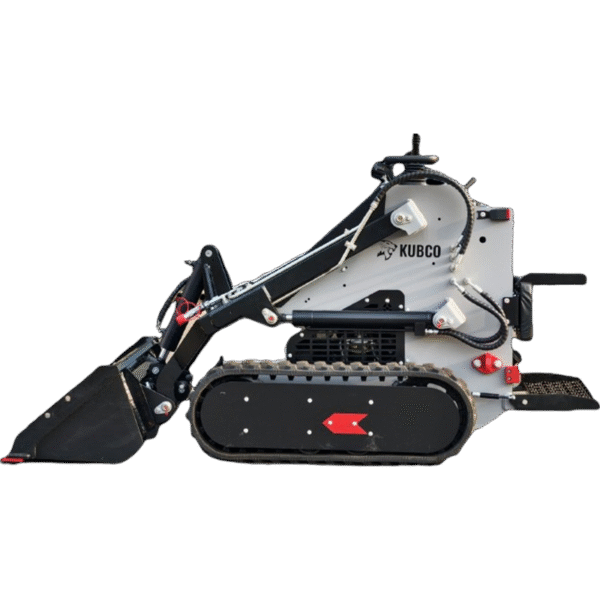

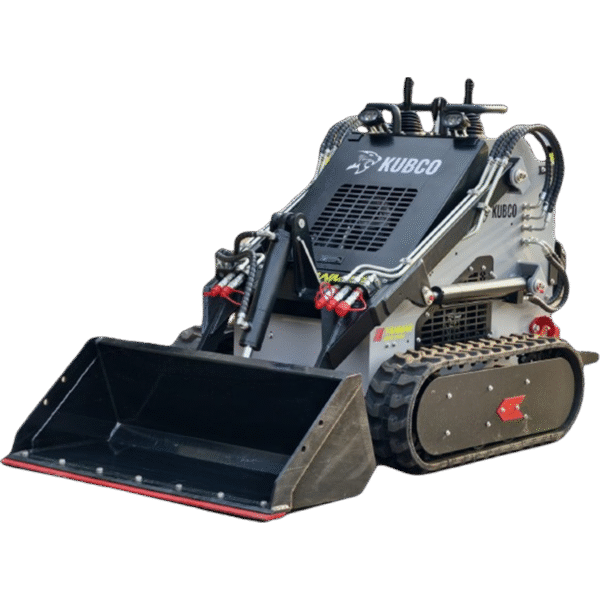

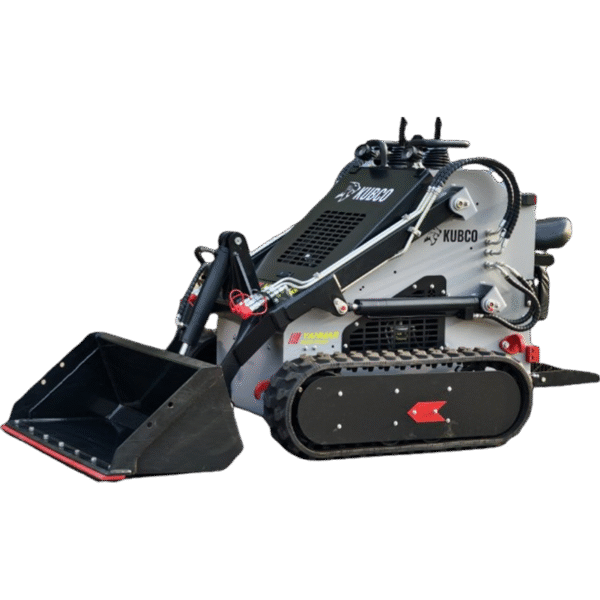

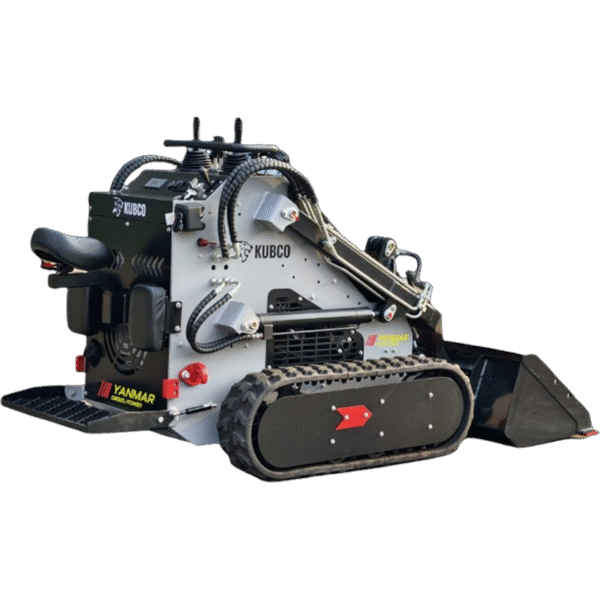

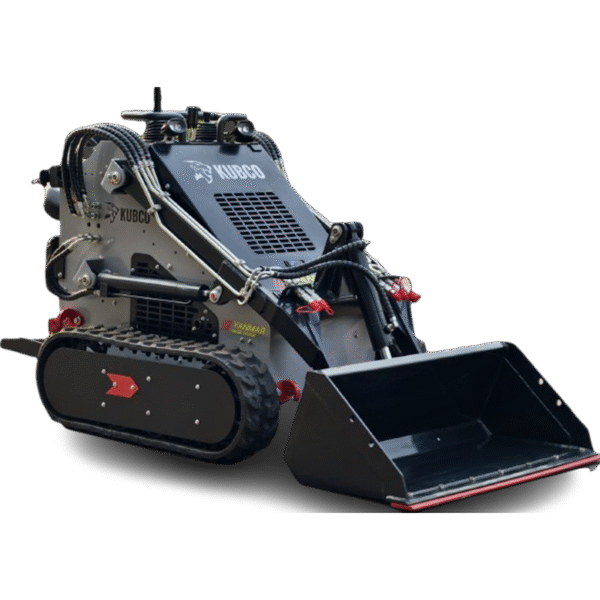

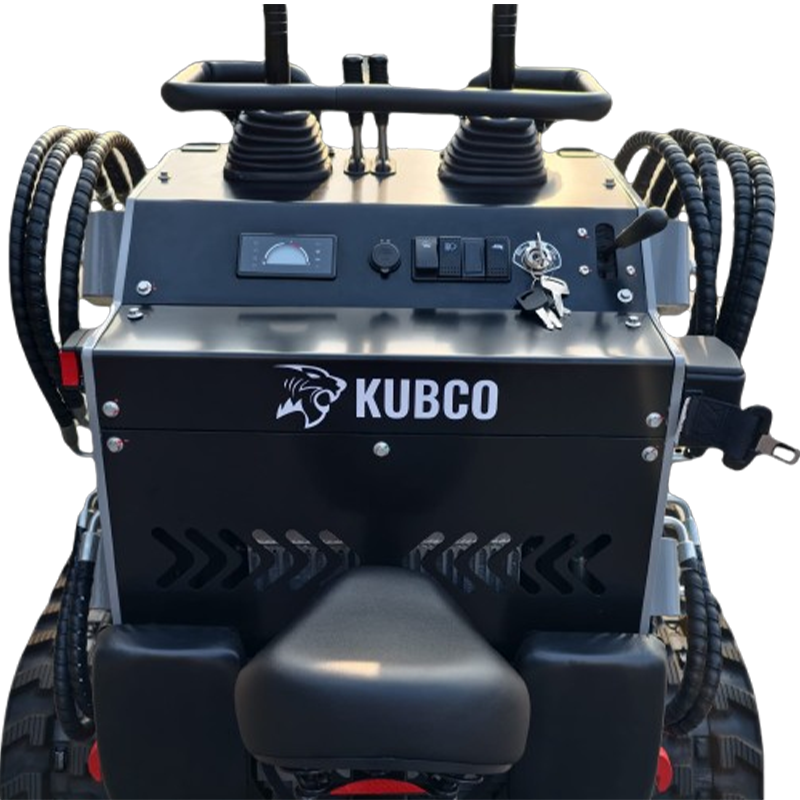

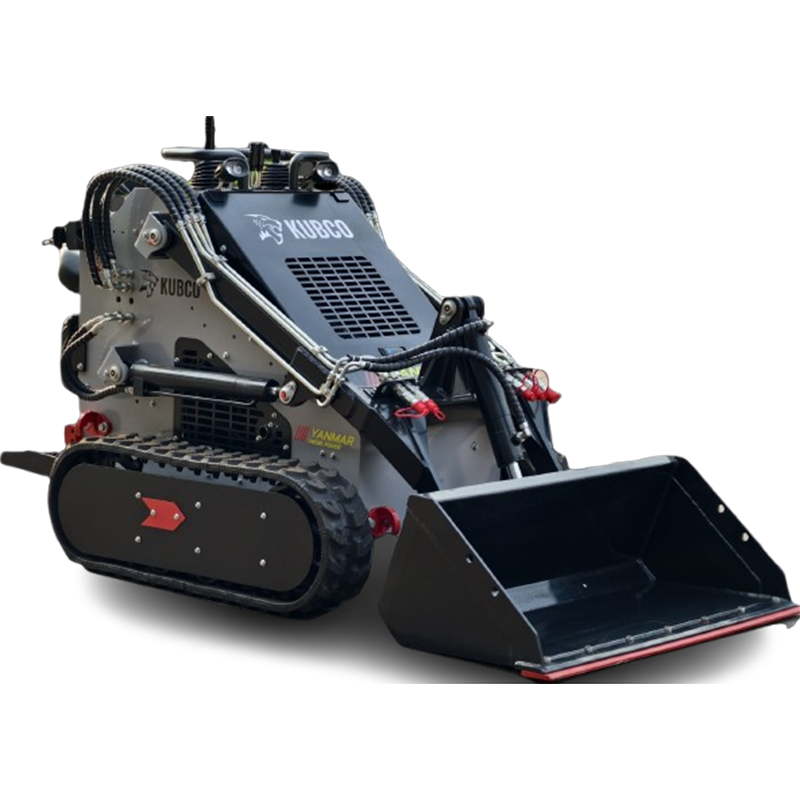

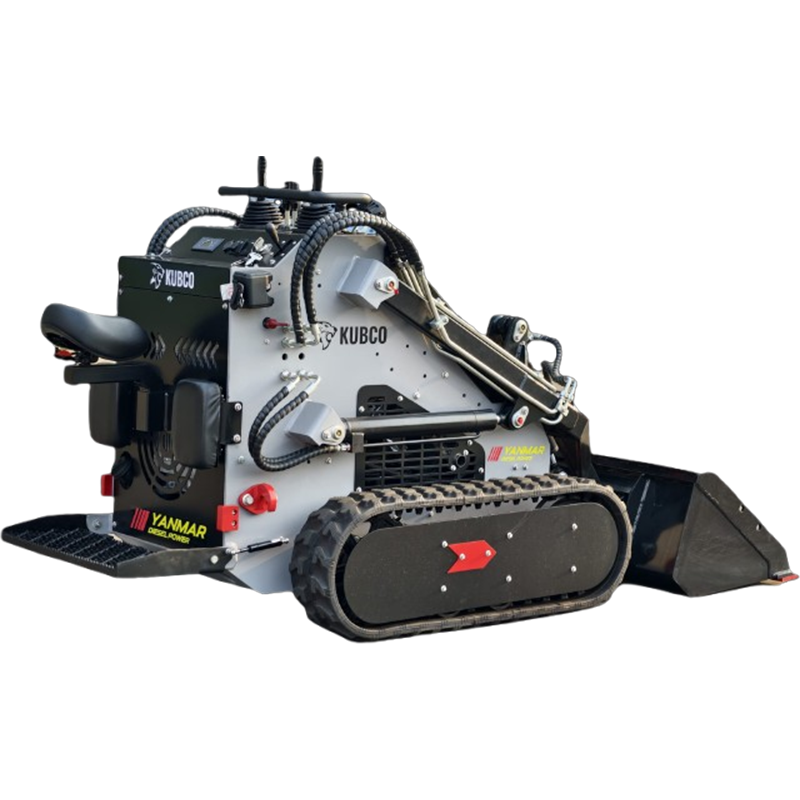

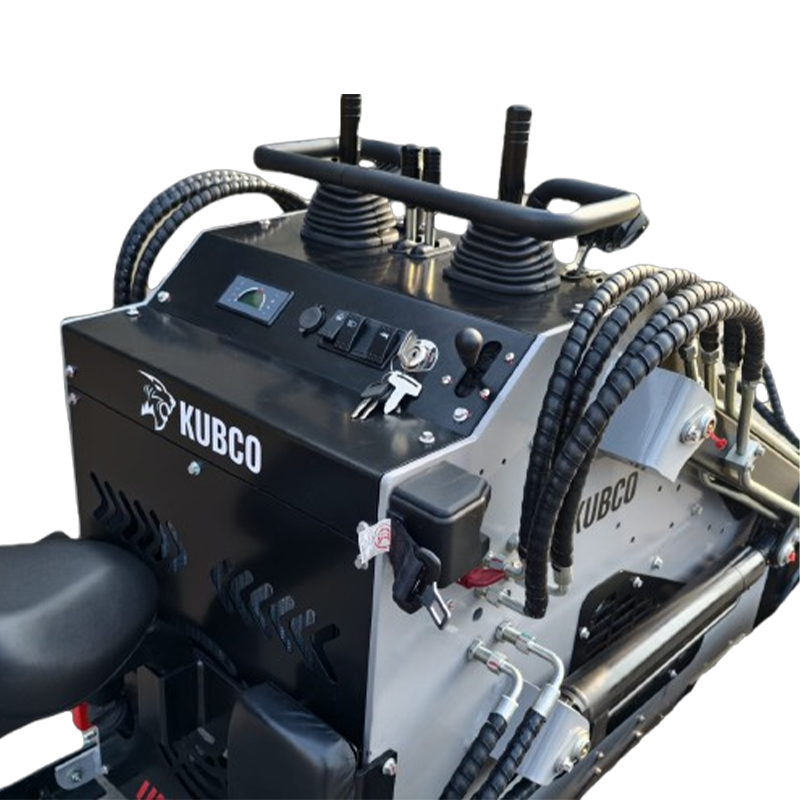

Skidsteer Loader KBS-380

$23,790.00 (+GST)

finance options available

  • Compact powerhouse engineered for tight job sites and heavy-duty lifting.

  • Versatile skidsteer with precision hydraulics and robust traction control.

  • Durable construction meets agile maneuverability for maximum productivity.

  • KBS-380: Built to tackle tough terrain with ease and efficiency.

Request a quote
Share
Contact

TECHNICAL SPECIFICATION

PERFORMANCE
Bucket capacity : 0.15 m3
Travel speed : 0-7.5 km/h
Max. unloading height : 1800 mm
Max. lifting weight : 375 kg
L x W x H : 2272 x 1140 x 1300 mm

ENGINE
Model : Yanmar 3TNV70-SSY
Type : 4 cycle, 3 cylinders, water cooled
Power output : 10/2200 kW/rpm
Max. Torque : 51.9/1600 N.m/rpm
Displacement : 0.854 L
Fuel tank : 10 L

GENERAL
Operating weight : 890 kg
Rated pressure : 17 Mpa
Tire model : 18×8.5-8
Max working height : 2,128 mm
Max pin height : 1886 mm
Max dump height : 1446 mm
The height point discharge distance : 419 mm
Total height : 1300 mm
Ground clearance : 118 mm
Wheel base : 700 mm
Total weidth : 1089 mm
Bucket width : 1140 mm

Skidsteer Loader KBS-380
Unmatched quality at an unbeatable price
Engine: Yanmar Diesel engine
• Load sensitive valve
• Tracked and wheeled model
• Full body robotic welding
• Full body powder coating
• Two speeds
• Wide range of attachments options
• Perfect finishing
• Quick after sale and parts supply
• Customizable colors

Reviews

There are no reviews yet.

Be the first to review “Skidsteer Loader KBS-380”

Your email address will not be published. Required fields are marked *

Related Products

Pro Excavator KBH-13E

Engine Power:
10kW
Machine mass:
1300 kg
Request
More Info

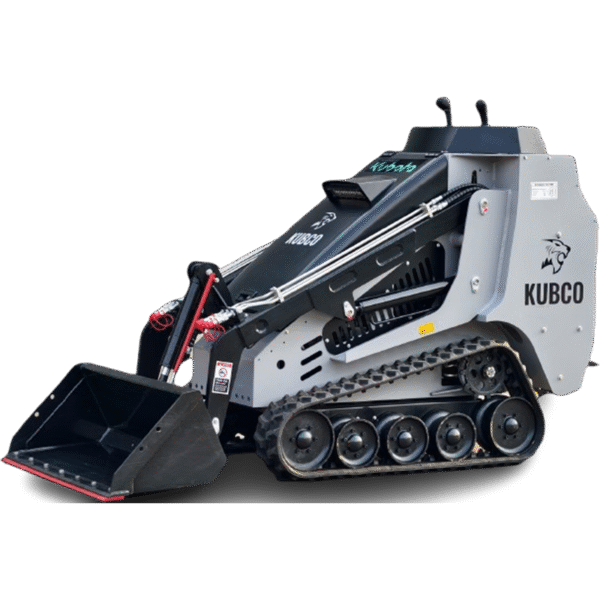

Skidsteer Loader KBS-580
