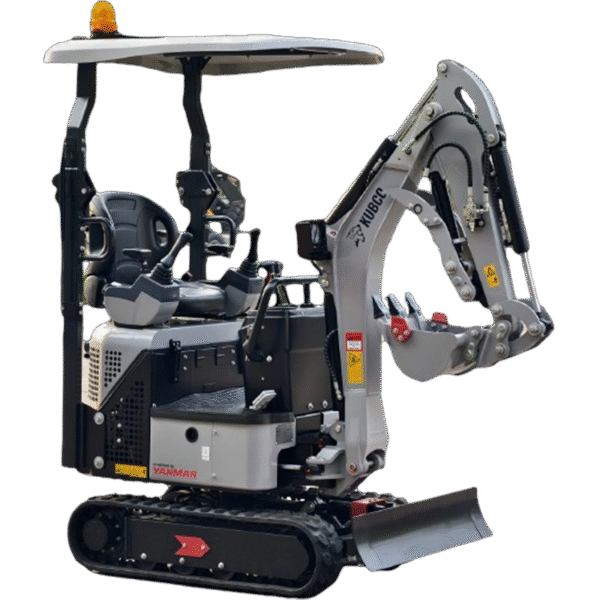

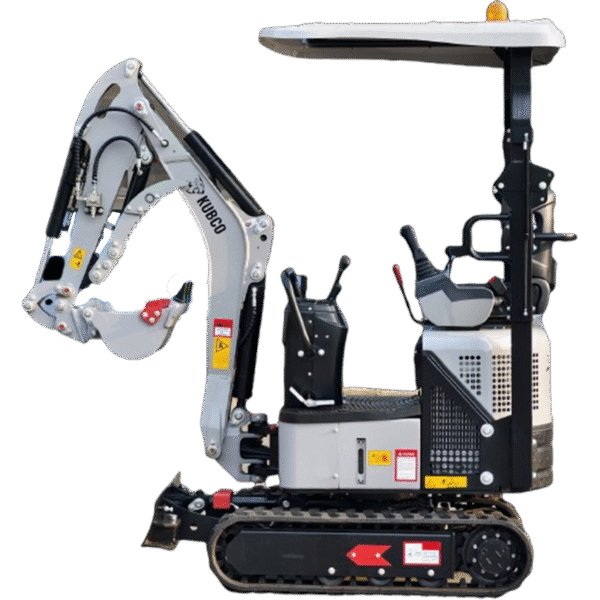

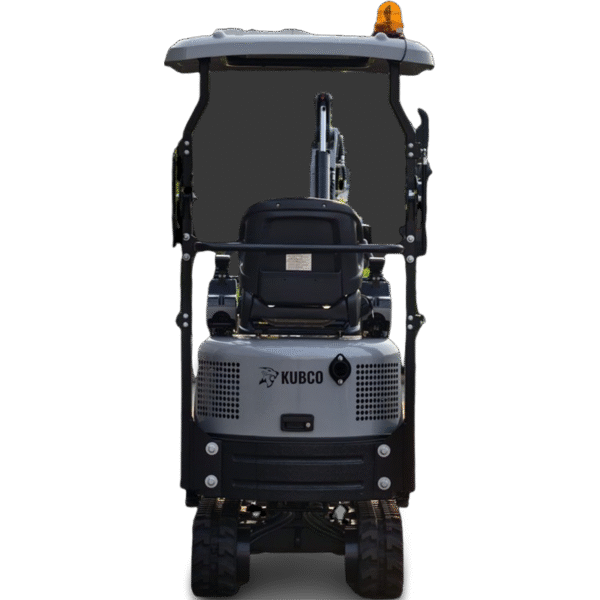

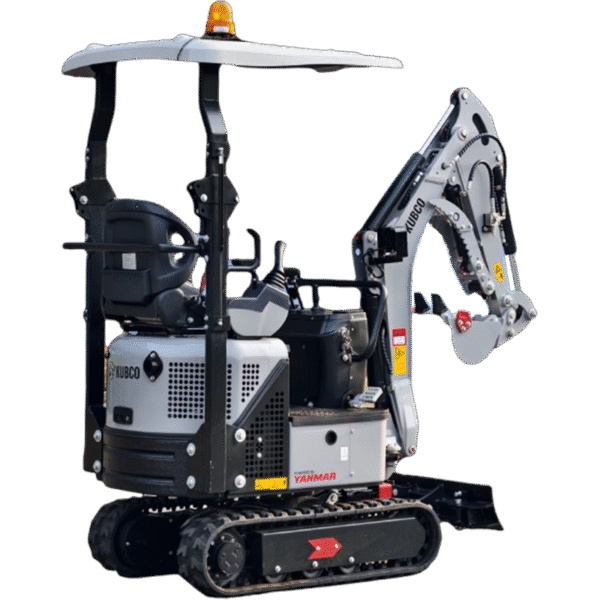

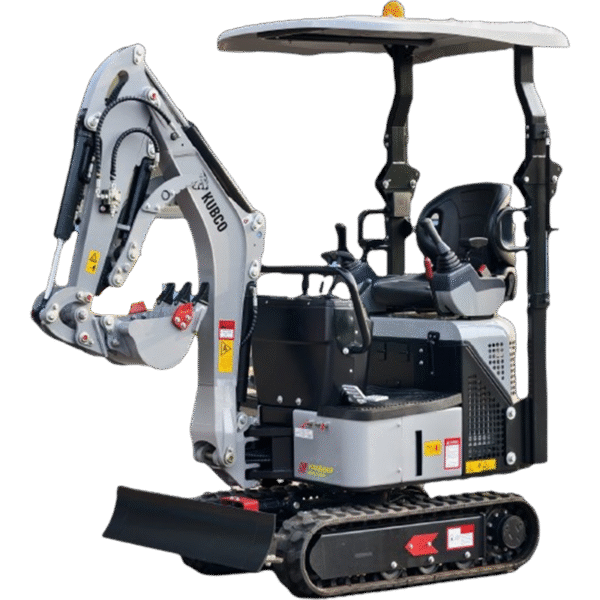

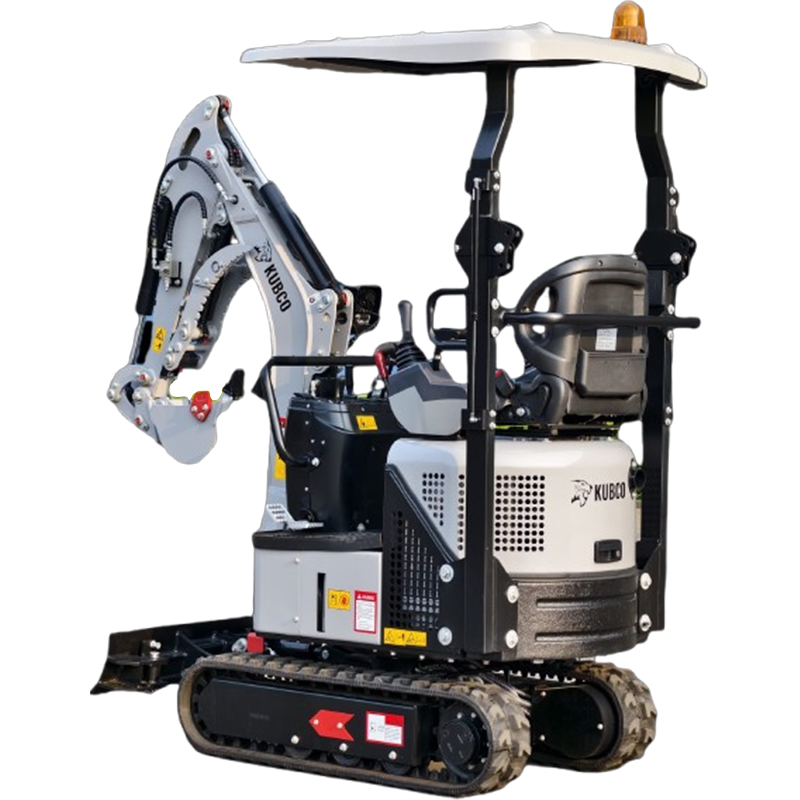

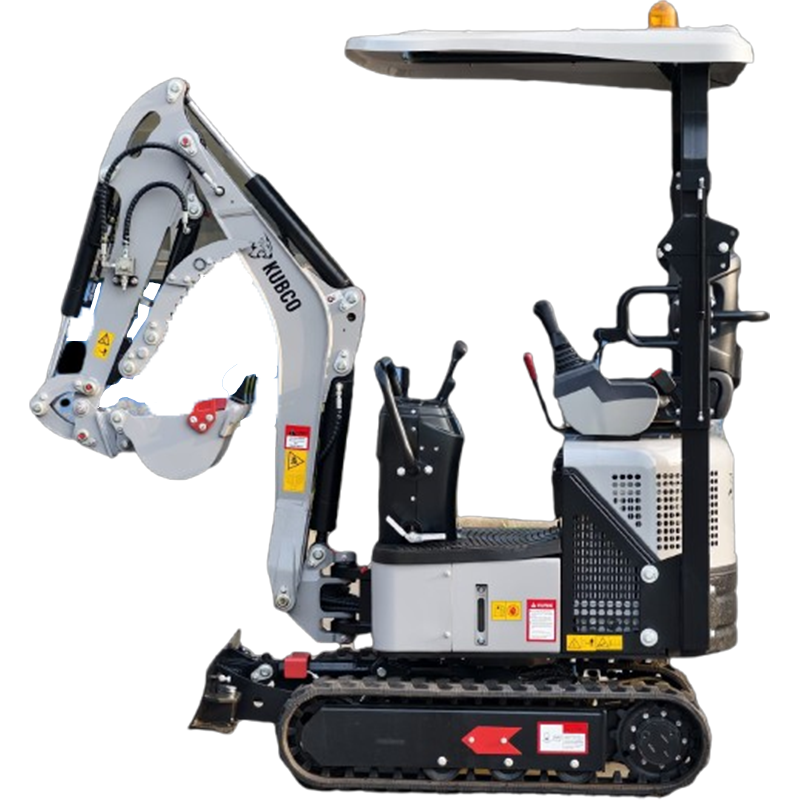

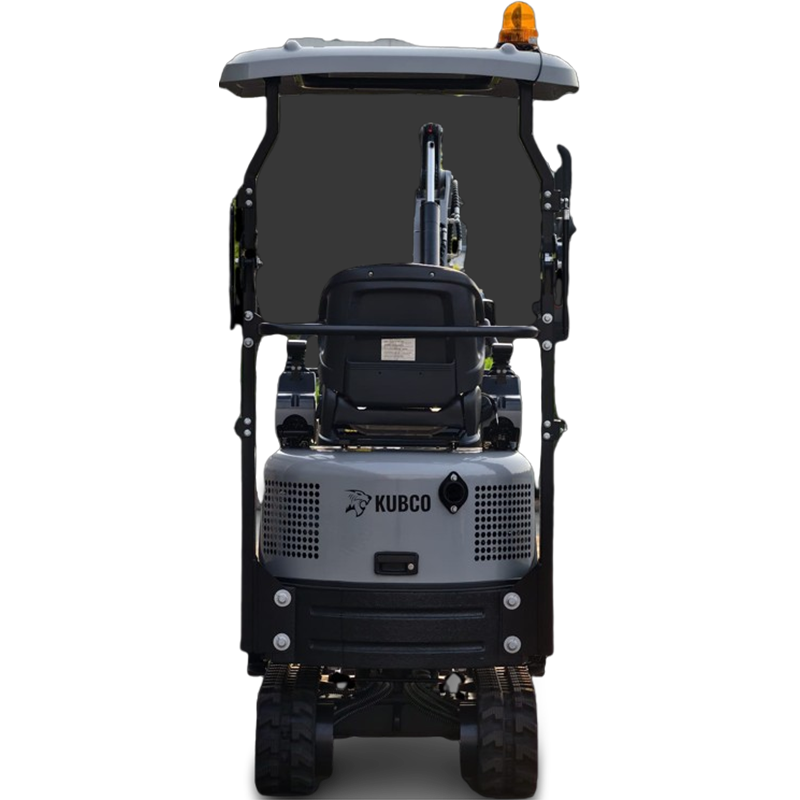

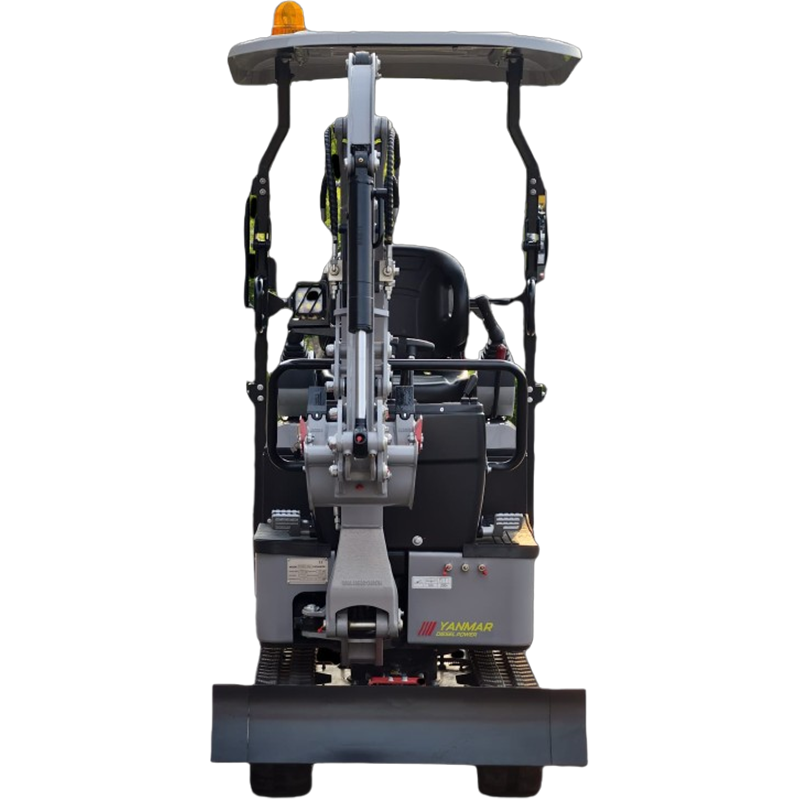

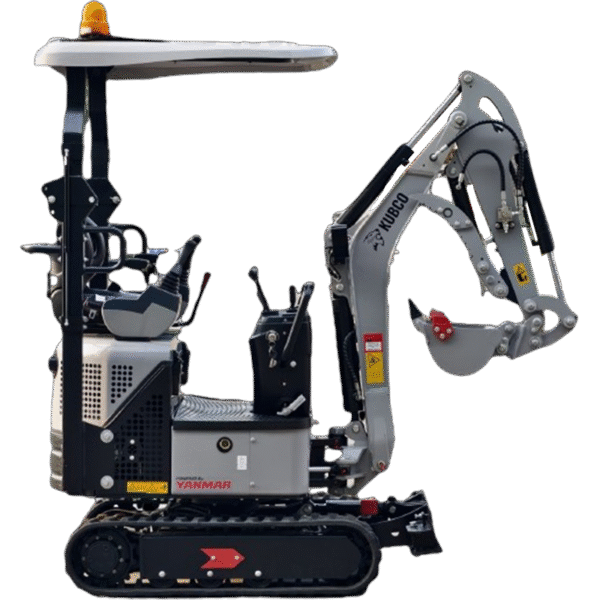

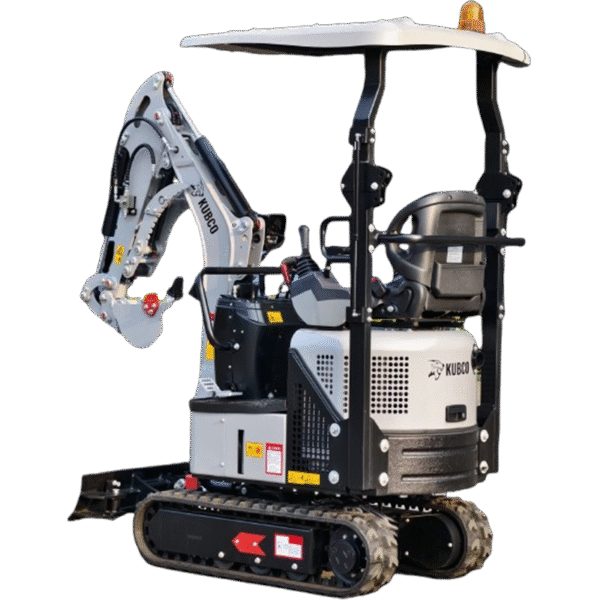

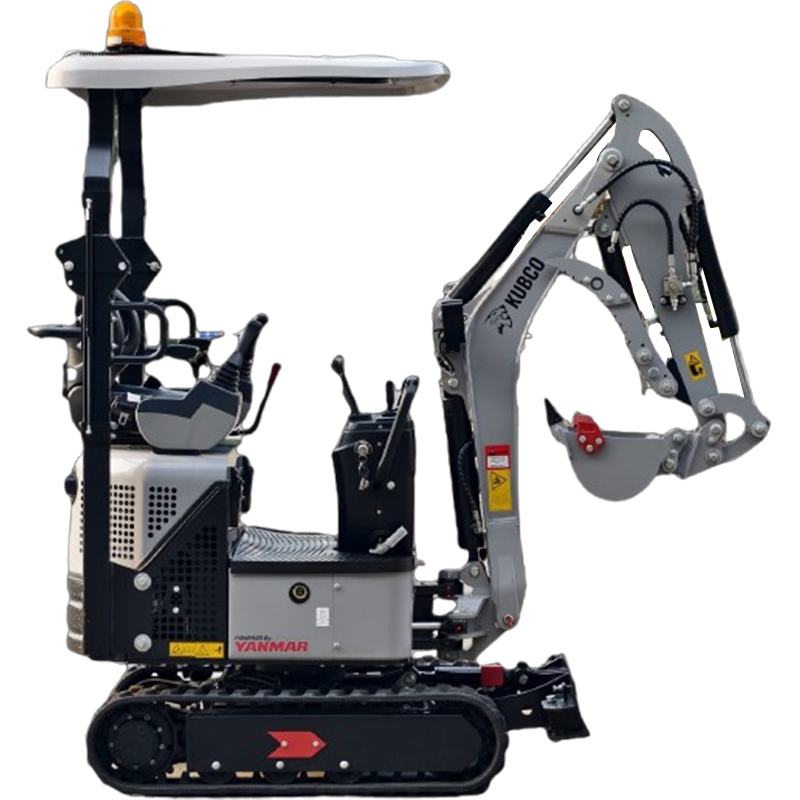

Pro Excavator KBH-13E

TECHNICAL SPECIFICATION

PERFORMANCE
Bucket capacity : 0.03 m3
Travel speed : 2.1/3.3 km/h two speeds
Drawbar pulling force : 9.77 KN
Bucket digging force : 13.1 KN
Arm crowding force : 6.95 KN

ENGINE
Model : Yanmar 3TNV70-SSY
Type : 4 cycle, 3 cylinders, water cooled
Power output : 10/2200 kW/rpm
Max. Torque : 51.9/1600 N.m/rpm
Displacement : 0.854 L
Fuel tank : 10 L

GENERAL
Machine mass, : 1300 kg
Ground pressure : 27 kPa
Track type : Rubber

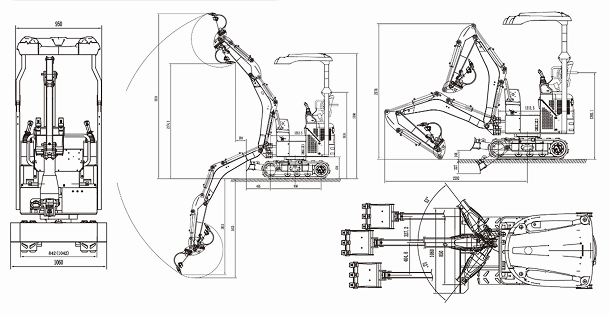

Adjustable track width : 842-1060 mm
Total length of track : 1300 mm
Individual track width : 180 mm
Max. digging reach : 3300 mm
Max. digging depth : 1900 mm
Max. digging height : 3124 mm
Max. dumping clearance : 2174 mm
Min. dumping clearance : 864 mm
Maxi. vertical wall digging depth : 1811 mm

Hydraulic system
Pump : Gear pump
Max. discharge flow : 11.3 ml/r
Relief valve seeting : 18 Mpa
Hydraulic oil tank : 21 L

SIDE DIGGING MECHANISM
Type : Boom swing
Offset angle to the left : 52 Degree
Offset angle to the right : 52 Degree
Dozer Blade
Width x Height : 860/1060 x 150 mm
Working ranges(height/depth) : 144/305 mm
